DIAMONDBACK E™ Automatic
Screen Printing Press

Machine

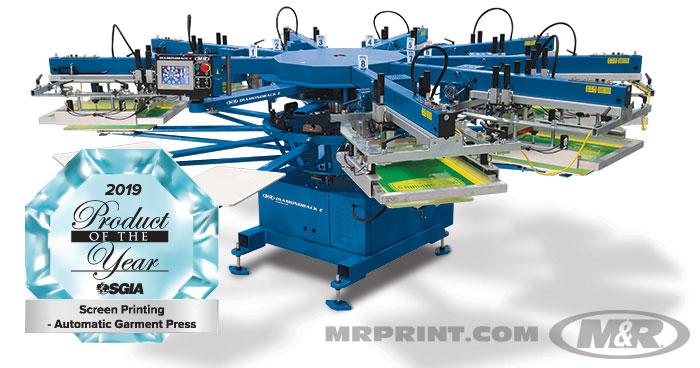

DIAMONDBACK E™ Automatic Screen Printing Press

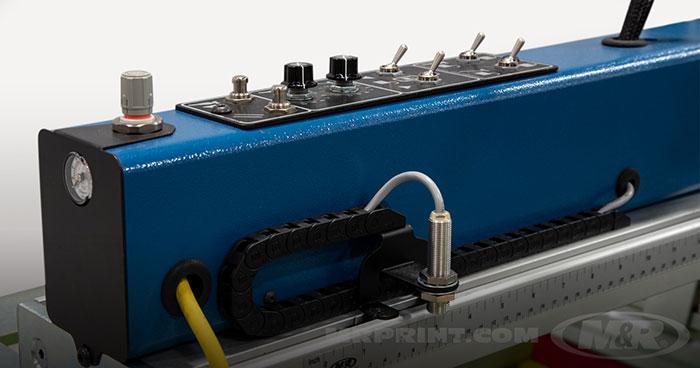

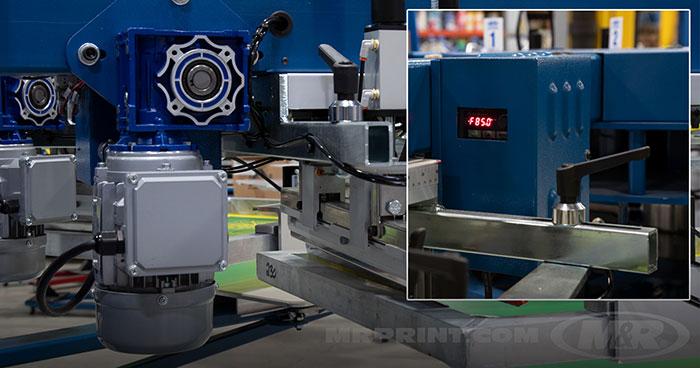

  • Electric printheads provide smooth, consistent print carriage movement
  • High-resolution touchscreen control panel with easy-to-use, icon-based logic and built-in tutorial screens
  • Available in 6, 8 or 10 colors

Downloadable Information

  • Product Brochure

Where to Buy

  • Explore our network of sales representatives

Financing

  • Financing Available - Learn More

CAROUSEL/INDEXER SYSTEM

  • Clockwise or counterclockwise rotation
  • Freewheel capability
  • Servo drive indexer provides smooth operation and durable consistency

CENTRAL OFF-CONTACT

  • Permits fast, incremental single-lever adjustment of all stations simultaneously

CERTIFICATION

  • CE & UL compliant: Built to specifications established by the European Committee for Standardization® (CE) and Underwriters Laboratories® (UL)

DESIGN & CONSTRUCTION

  • Designed & disassembled to fit through a 78 cm (31") doorway

FOOT PEDAL CONTROL

  • Allows indexing of the press using a foot pedal
  • Skip-Shirt foot pedal feature allows operators to avoid screen printing on empty pallets

OPTICAL NO-SHIRT DETECTOR

  • Automatically prevents the press from screen printing on empty pallets
  • Reduces misprints and minimizes press stoppage because of improperly loaded shirts
Air @ 6,9 bar (100 psi) 442 l/min (16 cfm)
Electrical Requirements 208/230 V, 3 ph, 30 A, 50/60 Hz, 7 kW
380/415 V, 3 ph, 16 A, 50/60 Hz, 7 kW
Maximum Frame Size (Alternating Printheads) 114 x 121 cm (45" x 48")
Maximum Image Area (Alternating Printheads) 100 x 84 cm (39" x 33")
Maximum Standard Frame Size 79 x 121 cm (31" x 48")
Maximum Standard Image Area 60 x 84 cm (24" x 33")
Overall Size (L x W) 610 x 348 cm (240” x 137”)
Stations/Colors 10/6

Detailed Equipment Information

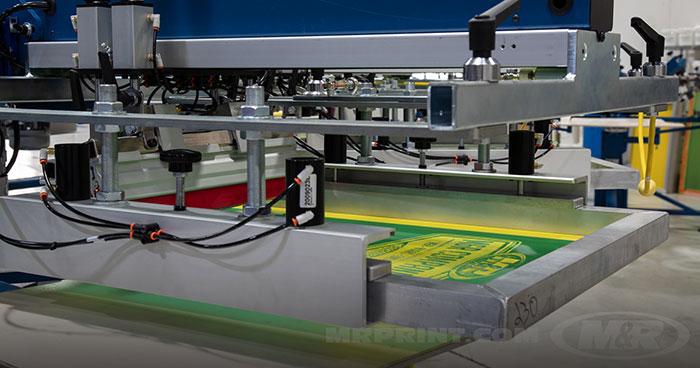

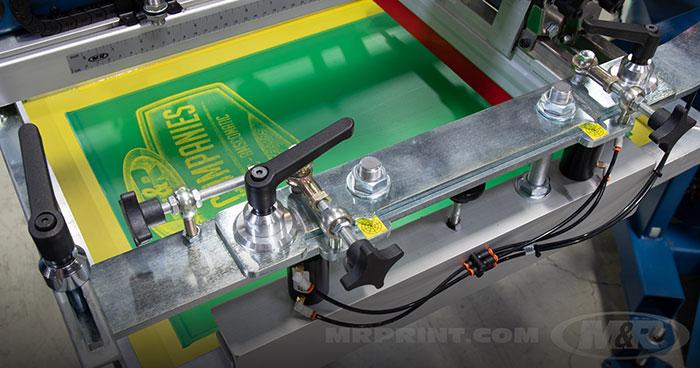

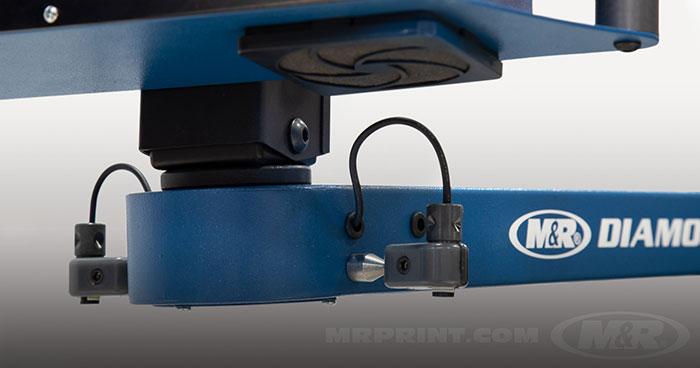

Electric printheads provide smooth consistent print carriage travel, while the pneumatic squeegee pressure regulators create even pressure across the print surface. The quick-set front and rear print carriage stops help to further optimize production speeds. Side frame holders with pneumatic clamps provide quick screen loading/unloading, while squeegee/floodbar air locks and tool-free angle adjustments further speed press set-up. Combine these features with M&R’s Tri-Sync™ Registration system, and you’ve got a press that is up and running in minutes!

The Diamondback E features a 7.5" high-resolution touchscreen interface with easy-to-learn logic and enhanced icon graphics. Built-in tutorial screens give quick onscreen access to multi-language setup guides, effectively putting a user’s manual at the operator’s fingertips.
