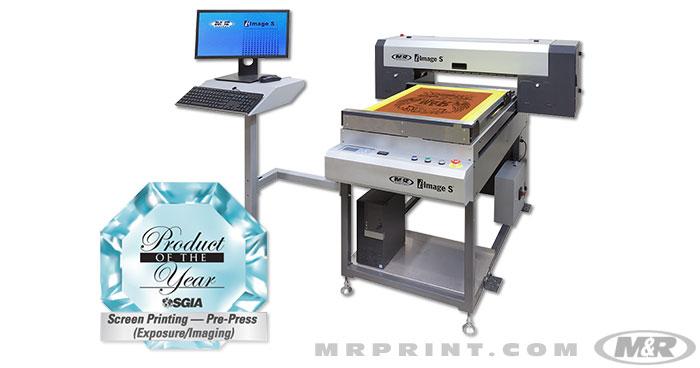

i-Image S™ Computer-to-Screen (CTS) Imaging System

  • Processes image areas up to 51 x 66 cm (20” x 26”)
  • Uses computer-to-screen inkjet printer technology to quickly generate opaque images on emulsion-coated screens
  • i-Image S can generate up to one-hundred full-size images per eight-hour shift

CERTIFICATION

  • CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
  • UL Listed: Built to specifications established by Underwriters Laboratories® (UL)

CONTROL CENTER

  • Automatic Pallet Preheat Mode™ with built-in pallet temperature sensor allows operators to preheat pallets to the desired temperature using any compatible flash cure unit
  • Digital microprocessor with self-diagnostics

DESIGN & CONSTRUCTION

  • Built of heavy-duty steel and premium components
  • Modular and expandable in 6-station increments
  • Oval shape takes up less floor space than comparable carousel automatic screen printing presses

DESIGN & CONSTRUCTION

  • Designed & disassembled to fit through a 78 cm (31") doorway

FOOT PEDAL CONTROL

  • Allows indexing of the press using a foot pedal
  • Skip-Shirt foot pedal feature allows operators to avoid screen printing on empty pallets

OPTICAL NO-SHIRT DETECTOR

  • Automatically prevents the press from screen printing on empty pallets
  • Reduces misprints and minimizes press stoppage because of improperly loaded shirts
Air @ 6,9 bar (100 psi) 442 l/min (16 cfm)
Electrical Requirements 208/230 V, 3 ph, 30 A, 50/60 Hz, 7 kW
380/415 V, 3 ph, 16 A, 50/60 Hz, 7 kW
Maximum Frame Size (Alternating Printheads) 114 x 121 cm (45" x 48")
Maximum Image Area (Alternating Printheads) 100 x 84 cm (39" x 33")
Maximum Standard Frame Size 79 x 121 cm (31" x 48")
Maximum Standard Image Area 60 x 84 cm (24" x 33")
Overall Size (L x W) 610 x 348 cm (240” x 137”)
Stations/Colors 10/6

Detailed Equipment Information

Electric printheads provide smooth consistent print carriage travel, while the pneumatic squeegee pressure regulators create even pressure across the print surface. The quick-set front and rear print carriage stops help to further optimize production speeds. Side frame holders with pneumatic clamps provide quick screen loading/unloading, while squeegee/floodbar air locks and tool-free angle adjustments further speed press set-up. Combine these features with M&R’s Tri-Sync™ Registration system, and you’ve got a press that is up and running in minutes!

The Diamondback E features a 7.5" high-resolution touchscreen interface with easy-to-learn logic and enhanced icon graphics. Built-in tutorial screens give quick onscreen access to multi-language setup guides, effectively putting a user’s manual at the operator’s fingertips.
