STRYKER™ Automatic Oval
Screen Printing Press

Machine

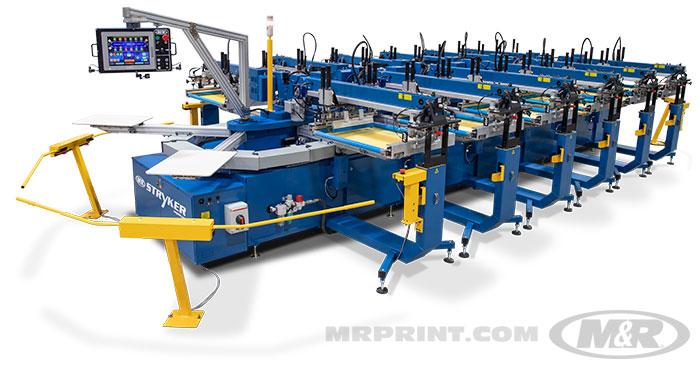

STRYKER™ Automatic Oval Screen Printing Press

  • Modular design allows custom configurations that can be tailored to almost any production requirement
  • Available in three different print formats: 6080 (24” x 33”), 70100 (27.5” x 39.4”) and 80110 (31.5” x 43.5”)
  • Stryker’s heavy-duty design and double index capability makes it an ideal platform for cut-piece and all-over garment printing

CERTIFICATION

  • CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
  • UL Listed: Built to specifications established by Underwriters Laboratories® (UL)

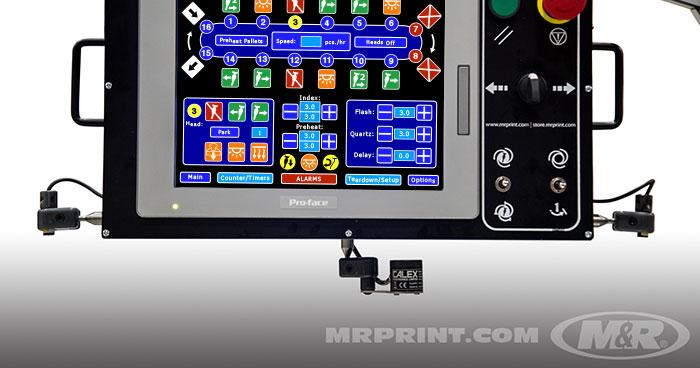

CONTROL CENTER

  • Automatic Pallet Preheat Mode™ with built-in pallet temperature sensor allows operators to preheat pallets to the desired temperature using any compatible flash cure unit
  • Digital microprocessor with self-diagnostics

DESIGN & CONSTRUCTION

  • Built of heavy-duty steel and premium components
  • Modular and expandable in 6-station increments
  • Oval shape takes up less floor space than comparable carousel automatic screen printing presses

ALL-OVER-PRINT CAPABILITIES

  • All-Over-Print pallets and sleeve support system

AUTO FOGGER

  • Adjustable delivery system feeds a highly atomized “fog” where needed to keep High Solids Acrylic (HSA) and water based inks from skimming over or drying in exposed mesh areas

FOOT PEDAL CONTROL

  • Allows indexing of the press using a foot pedal
  • Skip-pallet feature allows operators to avoid screen printing on misloaded or empty pallets
Air @ 6,9 bar (100 psi) 442 l/min (16 cfm)
Electrical Requirements 208/230 V, 3 ph, 30 A, 50/60 Hz, 7 kW
380/415 V, 3 ph, 16 A, 50/60 Hz, 7 kW
Maximum Frame Size (Alternating Printheads) 114 x 121 cm (45" x 48")
Maximum Image Area (Alternating Printheads) 100 x 84 cm (39" x 33")
Maximum Standard Frame Size 79 x 121 cm (31" x 48")
Maximum Standard Image Area 60 x 84 cm (24" x 33")
Overall Size (L x W) 610 x 348 cm (240” x 137”)
Stations/Colors 10/6

Detailed Equipment Information

RH Corp’s Stryker sets the standard for oval format screen printing presses. Its oval design takes up less floor space than comparable carousel automatic screen printing presses, making more efficient use of the available production area. Available in three print format sizes and expandable from 10 to 52 stations with selectable printhead locations, the Stryker can be tailored to almost any production requirement, floor layout or shop size.

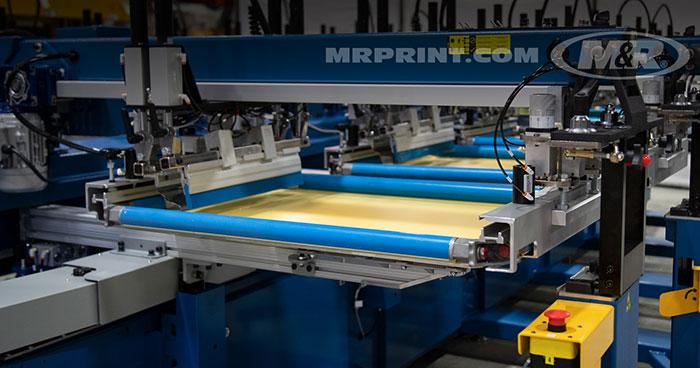

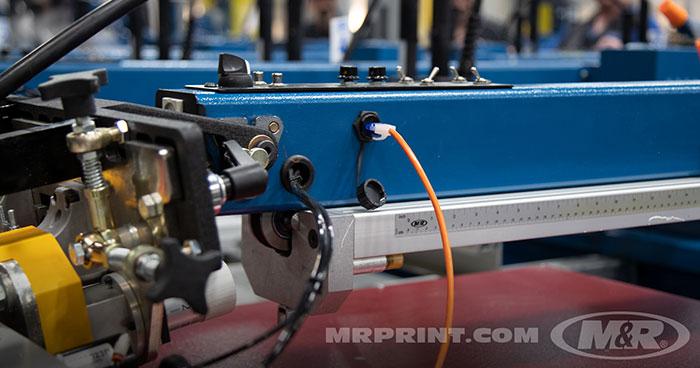

A high-quality, smooth-operating servo-drive indexer provides fast, accurate single or double indexing, making Stryker ideal for cut-piece and all-over print garments. The 80x110 model can print up to 132 x 110 cm (52" x 43.5") in alternating printheads! The AC-driven printheads deliver exceptional speed and control while tool-free squeegee/floodbar angle adjustments, calibrated four-point off-contact and quick stroke length changes allow operators to optimize setup efficiency and maximize productivity. Innovative standard features like M&R’s exclusive Squeegee Dam™ and Ink Dip™ systems are designed to keep thinner water-based and discharge inks correctly distributed in the screens for optimum printing and ink longevity. Combined with the optional fogger system, Stryker is the ultimate press for today’s printing needs and inks—further strengthening its reputation as the go-to press for many of the top printers around the world.

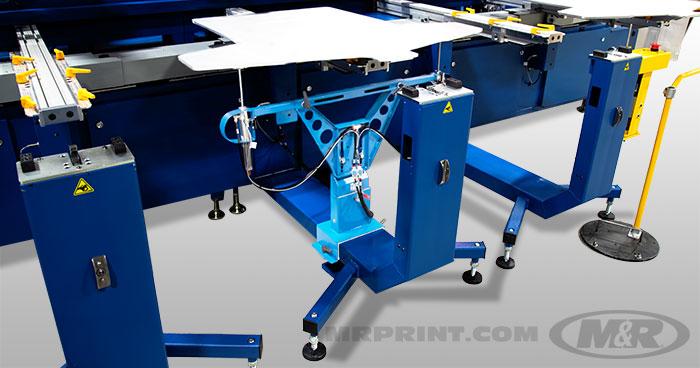

Stryker’s 10-station base module can be expanded in 6-station increments to create 16, 22, 28, 34, 40, 46, and 52-station configurations. Other than the two pallets at each end of the press, there are no restrictions on printhead placement, so Stryker’s layout can be tailored to almost any production requirement.
